Quickstart Guide: Building a Custom API CRM Integration

Overview

What you’ll build

A bidirectional integration enabling:

Automatic recording-to-opportunity matching
CRM context in Siro (customer names, deal amounts, outcomes)
Entity extraction data flowing back to your CRM

Time estimate

4-8 hours for a developer familiar with REST APIs

Prerequisites

API development experience
Admin access to your Siro workspace
Your system exposes appointment/opportunity data via API or database

Step 1: Get Your Siro API Credentials

Generate your organization token

Log into your Siro workspace as an admin

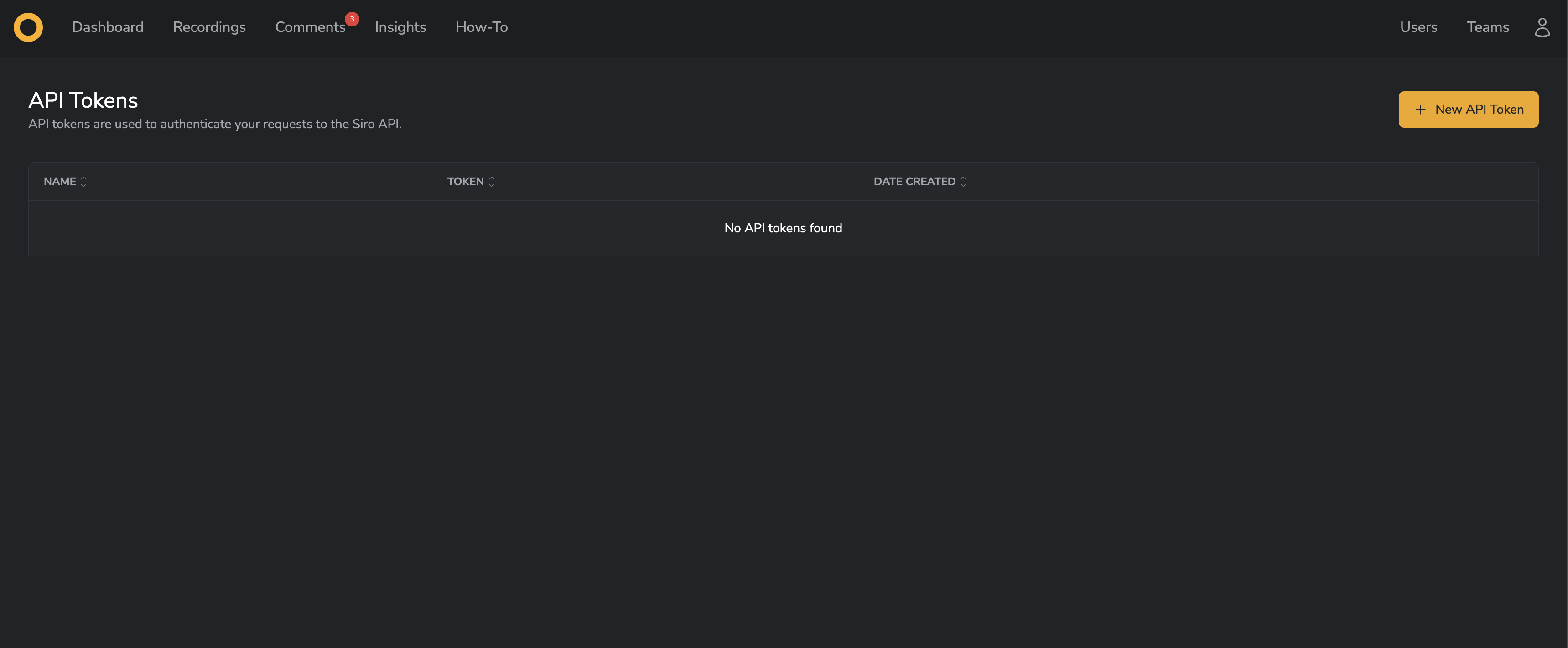

Navigate to Person Icon → API Tokens
Click Generate New API Token
Store this securely — use it as the Bearer value below (this is your organization integration token, not a user OAuth access token)

API Base URL

Most API calls use:

https://functions.siro.ai/api-externalApi/v1

Authentication: Send the organization token as a Bearer token:

curl --request GET \
  --url 'https://functions.siro.ai/api-externalApi/v1/core/mobile-events?pageSize=100' \
  --header 'Authorization: Bearer <organization-api-token>'

Documentation: Full API reference at docs.siro.ai

Step 2: Understand the Basics of the Data Model

Siro’s integration data model maps to standard CRM concepts.

CRM entity IDs

Siro-internal id (id): The UUID Siro stores for a synced CRM row (account, engagement, opportunity, external user, etc.). Use this when an API accepts our primary key—for example when linking a recording to CRM entities—or when reading ids from webhooks and detail payloads.
CRM-native id (externalId): The identifier in your CRM (for example a Salesforce Id). When you target entities by externalId, also send integrationConnectionId so Siro knows which CRM connection that id belongs to.

People: Siro Users vs External Users

Siro User: Someone who can sign into your Siro workspace (web or mobile). This maps to a SiroUser in our database. Examples: OAuth app owner, recording userId on recording detail, webhook siroUserId.
External User (same concept as CRM User): The synced representation of a rep or roster row from your CRM—the API resource named User. Sync payloads include externalId, email, and name; Siro maps External Users to Siro Users for attribution (automatic match or Settings → Integrations → User Mapping).

Your System	In Siro / API	Purpose
Sales rep / roster row in CRM	External User (`User`)	CRM-side identity; maps to a Siro User for workspace login and attribution
Customer / Account	`Account`	Customer information
Opportunity / Deal / Lead	`Opportunity`	Sales outcomes with dollar values
Appointment / Meeting	`Engagement`	Scheduled interactions that get recorded
Recording	`Recordings`	Siro recording

Key Relationship

The critical link is: Recording ↔ Engagement ↔ Opportunity AND/OR Account When you sync an Engagement to Siro with appointment details (time, location, rep), Siro can automatically match recordings to that engagement and surface the linked Opportunity context.

Step 3: Sync Your Data to Siro

3.1 Link External Users to Siro Users

User linking happens automatically. When you sync engagements or opportunities, include each rep’s CRM identifiers on User payloads (externalId, email, and name). Siro maps External Users to Siro Users by email or name match. Manual override is available in Settings → Integrations → User Mapping.

3.2 Sync Appointments (Engagements)

This is the core of the integration. Syncing engagements enables appointment lists for reps, automatic recording linking, and CRM context for AI features. Endpoint: PUT /v1/integrations/sync/engagements • Full docs Example request:

curl --request PUT \
  --url 'https://functions.siro.ai/api-externalApi/v1/integrations/sync/engagements' \
  --header 'Authorization: Bearer <organization-api-token>' \
  --header 'Content-Type: application/json' \
  --data '@-' <<EOF
{
  "externalId": "appt-456",
  "startTime": "2026-02-15T14:00:00Z",
  "endTime": "2026-02-15T15:00:00Z",
  "subject": "Smith Kitchen Remodel Consultation",
  "engagementType": {
    "activityType": "MEETING",
    "name": "meeting"
  },
  "engagementUsers": [
    {
      "externalId": "rep-123-from-your-crm",
      "email": "rep-123@kitchenremodel.com",
      "name": "John Sales"
    }
  ],
  "account": {
    "externalId": "account-789"
  },
  "opportunity": {
    "externalId": "opp-101"
  }
}
EOF

Payload notes:

activityType: Valid values are MEETING, CALL, APPOINTMENT, EMAIL, TEXT, EVENT
Only MEETING, APPOINTMENT, and EVENT appear in the Appointment List feature

3.3 Sync Opportunities

Adds deal context (amount, disposition, customer name) to recordings. Endpoint: PUT /v1/integrations/sync/opportunities • Full docs Example request:

curl --request PUT \
  --url 'https://functions.siro.ai/api-externalApi/v1/integrations/sync/opportunities' \
  --header 'Authorization: Bearer <organization-api-token>' \
  --header 'Content-Type: application/json' \
  --data '@-' <<EOF
{
  "externalId": "opp-101",
  "name": "Smith Kitchen Remodel",
  "amount": 45000,
  "closedAt": "2026-03-01T00:00:00Z",
  "disposition": "WON",
  "account": {
    "externalId": "account-789"
  },
  "opportunityUsers": [
    {
      "externalId": "rep-123-from-your-crm",
      "email": "rep-123@kitchenremodel.com",
      "name": "John Sales"
    }
  ]
}
EOF

3.4 Sync Accounts

Adds customer context (name, address, contact info) to recordings. Account syncing happens automatically when you include the nested account object with an externalId in engagement or opportunity payloads. See the engagement example in 3.2 for the basic structure, or add optional fields like emailAddresses, phoneNumbers, and addresses as needed.

Step 4: Pull Data from Siro Back to Your System

Once recordings are created and linked, retrieve AI-generated insights. Siro supports two ways to receive this data:

Real-time webhooks (recommended) — subscribe to events on your Siro workspace and receive HTTP callbacks the moment a recording is processed and linked to a CRM engagement. Covered in sections 4.1–4.3 below.
Polling — periodically query the engagement endpoint to check for linked recordings, then pull enriched data from separate endpoints. See Alternative: Polling Flow.

Note: Most integrations use your organization API token. To call Get Recording Details (section 4.3) or Get Entity Extractions (section 4.5), you also need OAuth setup below. If webhooks plus engagement polling are enough for your use case, you can skip OAuth.

OAuth Setup (Required for Recording Details & Entity Extractions)

1. Create an OAuth App

Endpoint: POST /v1/core/oauth/apps • Full docs Provide appName, owner (Siro User id), and organizationId. Store the returned clientID and clientSecret securely.

2. Generate OAuth Access Tokens

Endpoint: POST /v1/core/oauth/apps/{clientId}/access-token • Full docs Provide clientSecret, userId (Siro User id), and scope: "read". Use the returned accessToken for entity extractions. Tokens expire after 16 hours. Siro emits two event types that together signal a recording is fully ready for downstream processing:

Event type	Fires when
`integrations.recordingProcessed`	Siro finishes processing the recording (transcript, summary, entity extraction, etc.)
`integrations.recordingLinked`	Siro recording is definitively linked to a CRM record

These events fire independently and may arrive in either order — the recording may be linked before processing finishes, or vice versa. How to subscribe: Webhook subscriptions are managed from the Webhooks page in the Siro dashboard.

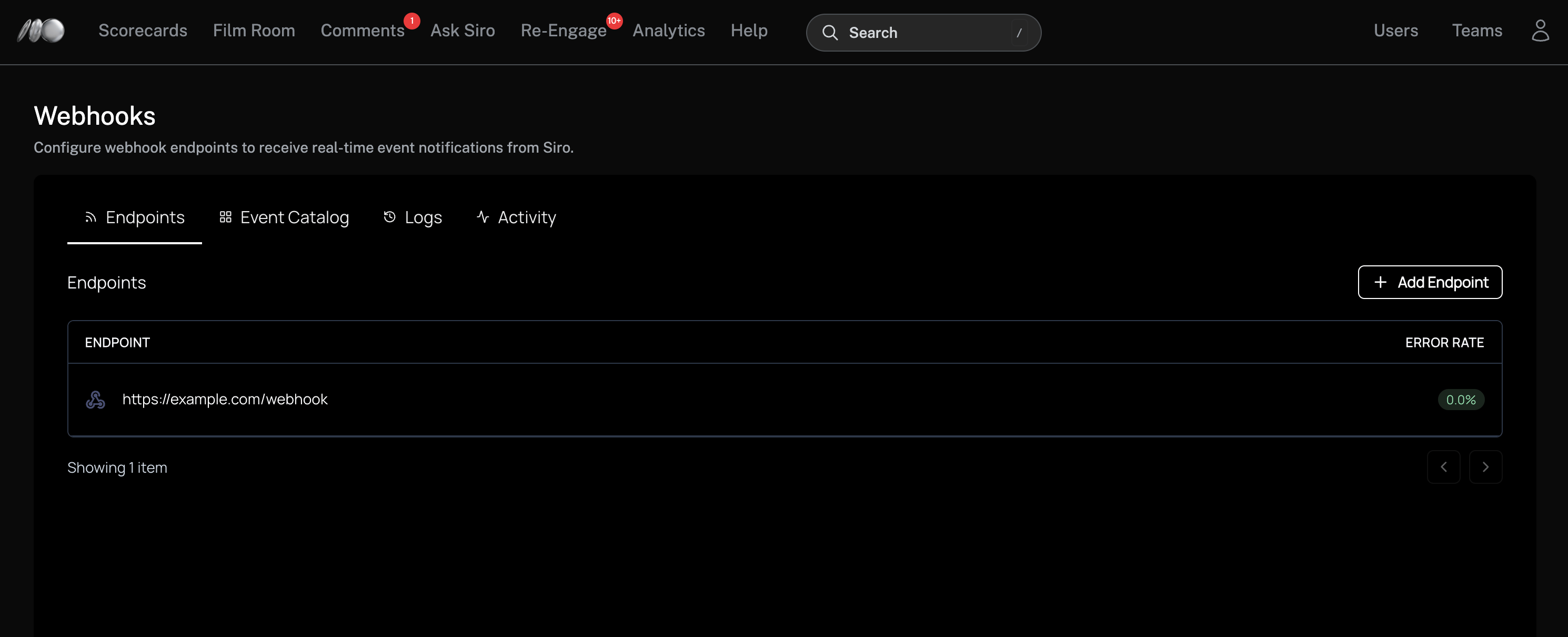

As an org admin, open the Organization Admin Area from the top-right menu and select Webhooks. You’ll see the Endpoints list where all your configured webhooks are shown.

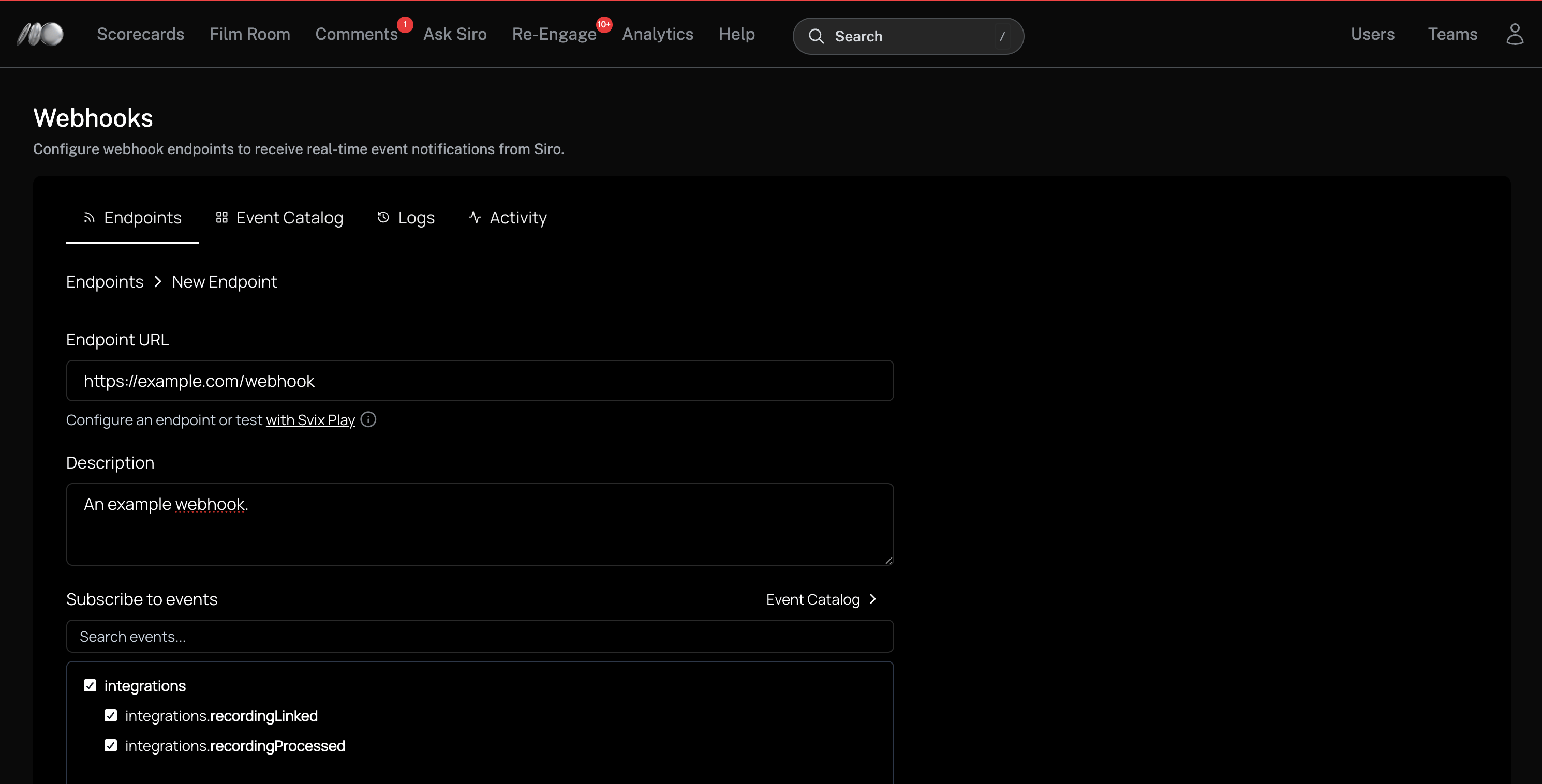

Click + Add Endpoint. Fill in your Endpoint URL (the HTTPS URL where you want to receive events), an optional Description, and select the events to subscribe to. Check both integrations.recordingLinked and integrations.recordingProcessed.

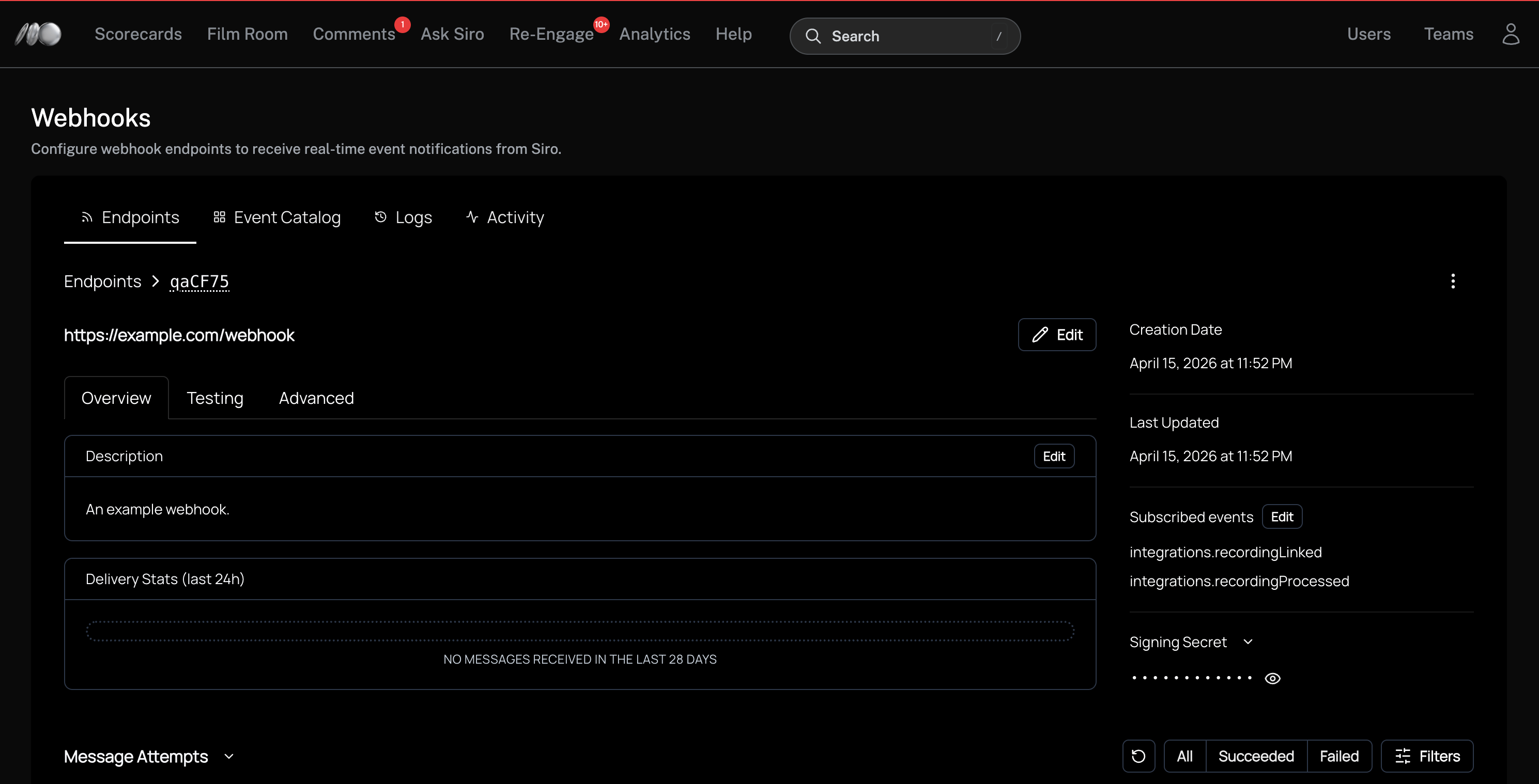

After saving, you’ll see the endpoint detail page with your Signing Secret. Copy this secret — you’ll use it to verify that incoming webhook payloads are authentic.

Webhook endpoint detail with signing secret

You can test your endpoint before going live using the Testing tab on the endpoint detail page, or by using Webhook.site to inspect payloads without setting up a server.

Verifying webhook signatures Every webhook delivery includes three headers used for verification:

Header	Description
`svix-id`	Unique message identifier
`svix-timestamp`	Timestamp in seconds since epoch
`svix-signature`	Base64-encoded signature(s), e.g. `v1,<sig>`

The recommended approach is to use the official Svix library, which handles signature construction and timestamp tolerance for you.

import { Webhook } from "svix"; // npm install svix

const secret = "whsec_YOUR_SIGNING_SECRET";

export default async function handler(req, res) {
  const payload = (await buffer(req)).toString(); // raw body
  const headers = req.headers;

  const wh = new Webhook(secret);
  try {
    wh.verify(payload, headers);
  } catch (err) {
    return res.status(400).json({});
  }

  // Signature valid — process the event
  res.json({});
}

from svix.webhooks import Webhook, WebhookVerificationError  # pip install svix

secret = "whsec_YOUR_SIGNING_SECRET"

def webhook_handler(request):
    payload = request.body
    headers = request.headers

    wh = Webhook(secret)
    try:
        msg = wh.verify(payload, headers)
    except WebhookVerificationError:
        return HttpResponse(status=400)

    # Signature valid — process the event
    return HttpResponse(status=200)

import svix "github.com/svix/svix-webhooks/go" // go get github.com/svix/svix-webhooks/go

secret := "whsec_YOUR_SIGNING_SECRET"

wh, err := svix.NewWebhook(secret)
err = wh.Verify(payload, headers) // returns nil on success

You must use the raw request body when verifying. Parsing the JSON first and re-serializing it will break the signature.

Subscribe to both event types. Every delivery carries the current state of both flags regardless of which event triggered it, which is what makes the filtering rule in 4.2 work without any correlation logic on your side.

4.2 Handle Webhook Payloads

Both event types share the same payload shape:

{
  "recordingId": "rec-abc-def",
  "siroUserId": "siro-user-123",
  "recordingProcessed": true,
  "recordingLinked": true,
  "eventType": "integrations.recordingProcessed",
  "crm": {
    "integrationConnectionId": "conn-123",
    "users": [{ "id": "user-uuid", "externalId": "crm-user-123" }],
    "engagement": { "id": "eng-uuid", "externalId": "appt-456" },
    "opportunity": { "id": "opp-uuid", "externalId": "opp-101" },
    "account": { "id": "acct-uuid", "externalId": "account-789" }
  }
}

Key fields:

recordingProcessed / recordingLinked — current boolean state of each condition. Every payload reports both, regardless of which event was emitted.
siroUserId — Siro User id for the rep associated with the recording.
crm.users[] — linked External Users; id is Siro-internal for that user row, externalId is the id from your CRM (when set).
crm.engagement / crm.opportunity / crm.account — each includes Siro-internal id plus CRM-native externalId where applicable.
crm.engagement.externalId — the appointment ID you originally synced (from 3.2).
crm.opportunity.externalId — the opportunity ID you originally synced (from 3.3).

Filtering rule: act only when both recordingProcessed and recordingLinked are true. Because every delivery reports current state for both conditions, the handler for whichever event fires last will naturally observe true / true — no correlation or state machine is needed. Example handler:

async function onSiroWebhook(payload) {
  if (!payload.recordingProcessed || !payload.recordingLinked) {
    // Not ready yet — the other event will arrive.
    return;
  }

  const { recordingId, crm } = payload;
  const engagementExternalId = crm?.engagement?.externalId;
  const opportunityExternalId = crm?.opportunity?.externalId;

  // Fetch enriched data — see 4.3
  const recording = await fetchRecordingDetails(recordingId);

  await yourCrm.attach({
    engagementExternalId,
    opportunityExternalId,
    summary: recording.summary,
    extractions: recording.entityExtractions,
  });
}

Idempotency: because the “both true” condition can be observed twice (once per event), dedupe by recordingId if your downstream side-effects aren’t idempotent.

4.3 Get Recording Details (Summary + Entity Extractions)

Endpoint: GET /v1/core/recordings/{recordingId} Base URL: https://api.siro.ai Note: This base URL is different from the main external API (https://functions.siro.ai/api-externalApi/v1). It matches the base used by the Entity Extractions endpoint (4.5). Authentication: Use OAuth access token (header: x-siro-auth-token) — see the OAuth Setup section above. Query parameters:

Param	Type	Purpose
`showSummary`	boolean	Include the concatenated LLM summary in the response
`showEntityExtractions`	boolean	Include per-definition entity extractions with CRM mappings

Both default to false. Example request:

curl --request GET \
  --url 'https://api.siro.ai/v1/core/recordings/rec-abc-def?showSummary=true&showEntityExtractions=true' \
  --header 'x-siro-auth-token: YOUR_OAUTH_ACCESS_TOKEN'

Response (relevant fields): (userId is the Siro User id; see People: Siro Users vs External Users in Step 2.)

{
  "data": {
    "id": "rec-abc-def",
    "organizationId": "org-789",
    "userId": "user-123",

    "summary": "Overview:\nThe rep walked the customer through financing options.\n\nNext Steps:\nSend a written proposal by Friday.",

    "entityExtractions": [
      {
        "id": "extraction_001",
        "recordingId": "rec-abc-def",
        "siroEntityDefinitionId": "def-uuid",
        "siroEntityDefinitionName": "Budget",
        "status": "SUCCESS",
        "extraction": [
          {
            "name": "Budget",
            "value": "$40,000 - $50,000",
            "mappings": [
              { "crmModelName": "Opportunity", "crmFieldName": "Budget__c" }
            ]
          }
        ]
      }
    ]
  }
}

Use case: in a single round-trip, pull both the conversation summary and any extracted custom fields ready to write back to your CRM.

Alternative: Polling Flow

If webhooks aren’t an option for your environment, use the engagement endpoint to poll for linked recordings and pull enriched data from the endpoints below. This flow uses an org API token for everything except entity extractions (4.5), which still requires OAuth.

4.4 Get Linked Recording for an Engagement

Endpoint: GET /v1/integrations/engagements/{id} • Full docs Response includes:

{
  "id": "eng-123",
  "externalId": "appt-456",
  "recordingId": "rec-abc-def",
  "engagementType": "appointment",
  "opportunityId": "opp-101",
  "accountId": "account-789"
}

Use the recordingId to fetch detailed data.

4.5 Get Entity Extractions (CRM Autofill Data)

Endpoint: GET /v1/core/entities/extractions/{recordingId} • Full docs Base URL: https://api.siro.ai Note: This base URL is different from other API endpoints. Authentication: Use OAuth access token (header: x-siro-auth-token) Response example:

{
  "data": [
    {
      "id": "extraction_001",
      "recordingId": "rec-abc-def",
      "extraction": [
        {
          "name": "Budget",
          "value": "$40,000 - $50,000"
        },
        {
          "name": "Timeline",
          "value": "Spring 2026"
        },
        {
          "name": "Decision Maker",
          "value": "Both homeowners present, wife is primary"
        },
        {
          "name": "Objections",
          "value": "Concerned about project timeline due to summer vacation plans"
        }
      ],
      "createdAt": "2026-01-28T00:00:00Z",
      "updatedAt": "2026-01-28T00:00:00Z"
    }
  ]
}

Use case: Write extracted fields back to your CRM to auto-populate data from conversations.

4.6 Get Recording Summaries

Endpoint: GET /v1/core/recordings/{recordingId}/summaries Response:

{
  "data": [
    {
      "id": "summary-001",
      "name": "AI Summary",
      "content": "Summary text here..."
    }
  ]
}

Use case: Write summaries as CRM notes to create an activity trail.

Auto Start/Stop via Deep Linking (Optional)

Start Siro recordings directly from your mobile app: URL format:

siro://record?appointmentId={external-id}&title={customer-name}&opportunityId={opp-external-id}

Example:

siro://record?appointmentId=appt-456&title=Smith Kitchen Remodel&opportunityId=opp-101

Siro will use the appointmentId to link the recording to the engagement and opportunityId to link the associated opportunity immediately.

Next Steps

Test it: Sync a test appointment, record a conversation at that time, and verify CRM context appears
Automate syncs: Use real-time webhooks (recommended) or batch jobs every 10 minutes
Custom fields: Work with your CSM to configure custom entity extraction fields
Troubleshoot: If recordings aren’t linking, check Settings → Users to verify email mappings
Train your team: Show reps how recordings link to CRM records

Getting Help

Technical questions: Email your Customer Success Manager or reach out to customersuccess@siro.ai API issues: Include your request details (method, endpoint, payload) and organization ID when reaching out.

​Overview

​What you’ll build

​Time estimate

​Prerequisites

​Step 1: Get Your Siro API Credentials

​Generate your organization token

​API Base URL

​Step 2: Understand the Basics of the Data Model

​CRM entity IDs

​People: Siro Users vs External Users

​Key Relationship

​Step 3: Sync Your Data to Siro

​3.1 Link External Users to Siro Users

​3.2 Sync Appointments (Engagements)

​3.3 Sync Opportunities

​3.4 Sync Accounts

​Step 4: Pull Data from Siro Back to Your System

​OAuth Setup (Required for Recording Details & Entity Extractions)

​1. Create an OAuth App

​2. Generate OAuth Access Tokens

​4.1 Subscribe to Webhook Events

​4.2 Handle Webhook Payloads

​4.3 Get Recording Details (Summary + Entity Extractions)

​Alternative: Polling Flow

​4.4 Get Linked Recording for an Engagement

​4.5 Get Entity Extractions (CRM Autofill Data)

​4.6 Get Recording Summaries

​Auto Start/Stop via Deep Linking (Optional)

​Next Steps

​Getting Help

Overview

What you’ll build

Time estimate

Prerequisites

Step 1: Get Your Siro API Credentials

Generate your organization token

API Base URL

Step 2: Understand the Basics of the Data Model

CRM entity IDs

People: Siro Users vs External Users

Key Relationship

Step 3: Sync Your Data to Siro

3.1 Link External Users to Siro Users

3.2 Sync Appointments (Engagements)

3.3 Sync Opportunities

3.4 Sync Accounts

Step 4: Pull Data from Siro Back to Your System

OAuth Setup (Required for Recording Details & Entity Extractions)

1. Create an OAuth App

2. Generate OAuth Access Tokens

4.1 Subscribe to Webhook Events

4.2 Handle Webhook Payloads

4.3 Get Recording Details (Summary + Entity Extractions)

Alternative: Polling Flow

4.4 Get Linked Recording for an Engagement

4.5 Get Entity Extractions (CRM Autofill Data)

4.6 Get Recording Summaries

Auto Start/Stop via Deep Linking (Optional)

Next Steps

Getting Help
